RGB LED Web Server: Color Picker

By the end of this project, you will:

• Understand how one RGB LED package holds three separate LEDs, and what "common cathode" means for wiring.
• Mix any colour by setting three PWM duty cycles, the same additive mixing a screen uses.
• Drive three PWM outputs at once with the Core v3.x+ ledcAttach() API.
• Parse values out of a URL, extracting three numbers from a request like /?r201g32b255&.
• Combine two earlier projects: Project 3's PWM and Project 5's web server.

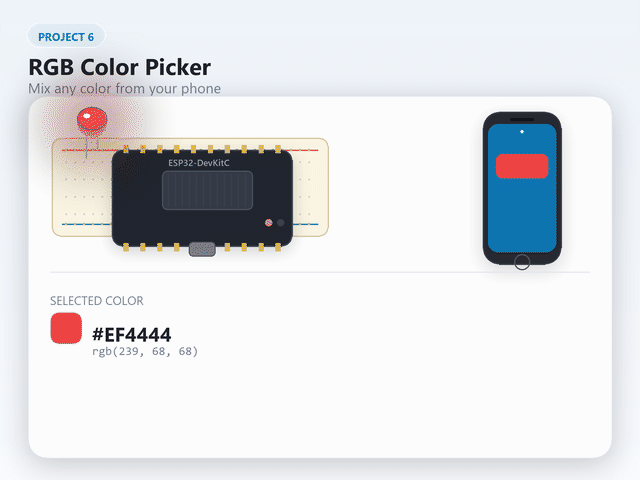

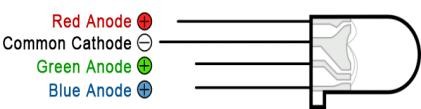

An RGB LED is three LEDs in one. The kit's are common cathode: all three share one negative leg, each color has its own anode:

Setting each color's brightness with PWM mixes new colors:

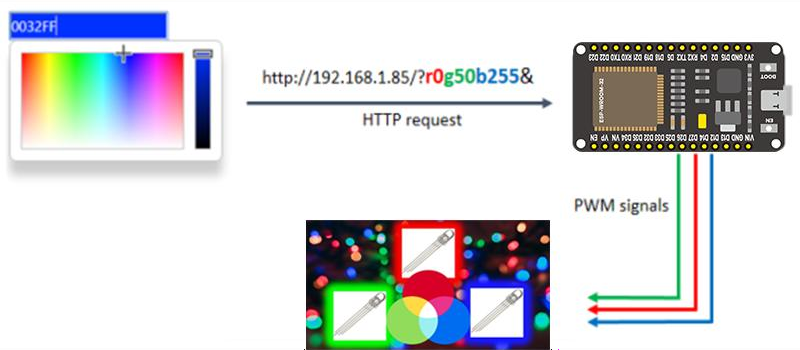

Pressing Change Color requests a URL that encodes the color:

/?r201g32b255&

The ESP32 finds the r, g, b, & markers, slices out each number, and writes it to the matching PWM pin:

redString   = header.substring(pos1+1, pos2);   // "201"
ledcWrite(redPin, redString.toInt());           // 0..255

Setting up three PWM outputs

This is Project 3's PWM done three times, once per color. Each pin gets one ledcAttach() call in setup():

const int freq = 5000;        // 5 kHz, far too fast for the eye to see
const int resolution = 8;     // 8 bits -> 256 levels per color (0..255)

ledcAttach(redPin,   freq, resolution);   // GPIO 13
ledcAttach(greenPin, freq, resolution);   // GPIO 12
ledcAttach(bluePin,  freq, resolution);   // GPIO 14

8‑bit resolution is what makes the color picker line up so neatly: it hands you 0 to 255 per color, one duty‑cycle step per level, giving 256³ ≈ 16.7 million colors.

Set your Wi‑Fi ssid/password (2.4 GHz), upload, open Serial Monitor at 115200, press EN/RESET:

==============================================
 Project 6: ESP32 RGB LED Web Server
==============================================
RGB LED -> R:GPIO13  G:GPIO12  B:GPIO14
Connecting to Wi-Fi: MyNetwork
....
Wi-Fi connected!
Open this address in your browser:  http://192.168.1.42
----------------------------------------------
[WEB] Color set -> R:201  G:32  B:255

Open the address, pick a color, press Change Color. The log prints the exact R/G/B applied (added to the original sketch).

This is Project 5's web server with two changes: the outputs are PWM instead of on/off, and the request carries three numbers instead of naming a fixed action. Here are the parts that are new.

Step 1: Pins, PWM settings, and the strings that hold the colour

const int redPin   = 13;   // 13 corresponds to GPIO13
const int greenPin = 12;
const int bluePin  = 14;

const int freq = 5000;     // 5 kHz PWM
const int resolution = 8;  // 8 bits -> 0..255 per colour

String redString = "0", greenString = "0", blueString = "0";

The colours are kept as String rather than numbers because that is how they arrive: as text sliced out of the URL. They become integers only when written to the LED.

Step 2: three PWM channels plus Wi-Fi in setup()

ledcAttach(redPin,   freq, resolution);   // GPIO 13
ledcAttach(greenPin, freq, resolution);   // GPIO 12
ledcAttach(bluePin,  freq, resolution);   // GPIO 14

WiFi.begin(ssid, password);
server.begin();

Section 2's PWM setup followed by Project 5's Wi-Fi setup, unchanged. Nothing about hosting a page interferes with PWM: the LED PWM controller is hardware and keeps running while the processor handles requests.

Step 3: loop() parses the colour out of the URL

The HTTP skeleton (accept a client, read bytes, wait for the blank line, reply) is exactly Project 5's. The new part is what happens once a request has arrived:

// Request sample: /?r201g32b255&   ->  Red=201 Green=32 Blue=255
if (header.indexOf("GET /?r") >= 0) {
  pos1 = header.indexOf('r');       // find each marker
  pos2 = header.indexOf('g');
  pos3 = header.indexOf('b');
  pos4 = header.indexOf('&');

  redString   = header.substring(pos1 + 1, pos2);   // "201"
  greenString = header.substring(pos2 + 1, pos3);   // "32"
  blueString  = header.substring(pos3 + 1, pos4);   // "255"

  ledcWrite(redPin,   redString.toInt());
  ledcWrite(greenPin, greenString.toInt());
  ledcWrite(bluePin,  blueString.toInt());
}

The letters r, g, b and the final & are delimiters. Each number is whatever sits between one marker and the next, so substring(pos1 + 1, pos2) means "from just after the r up to the g". A crude hand-rolled parser, but it makes the mechanism visible in a way a library call would not.

The page is sent by the same client.println() calls as Project 5. It loads the jsColor picker, whose onFineChange handler rewrites the link's address as you drag, building the ?r…g…b…& URL that the code above takes apart.

Key concepts: what each line really does

Going further: gamma correction (why the slider doesn't look linear)

Doubling the PWM duty cycle does not double how bright the LED looks. Human eyes perceive brightness on a roughly logarithmic curve, so raising a channel from 10 to 20 (out of 255) looks like a big jump, while 200 to 210 looks almost unchanged, even though both moved the same 10 steps. That's why a 0-to-255 slider feels bunched up at the bright end.

Gamma correction fixes this by remapping each value before you write it:

uint8_t gammaCorrect(uint8_t value) {
  return (uint8_t)(pow(value / 255.0, 2.8) * 255.0 + 0.5);
}
// ...
ledcWrite(redPin, gammaCorrect(redString.toInt()));

Raising the input to a power (a common choice is 2.8) compresses the low end and stretches the high end, so equal steps in the slider look like more equal steps in brightness. Screens, camera flashes, and stage lighting all apply the same correction, for the same reason: your eye's response to light isn't the one the PWM hardware assumes.

This project combines two earlier ones rather than teaching something entirely new, which is how most real devices get built.

• An RGB LED is three LEDs sharing one leg. On a common-cathode part that leg goes to GND and each colour gets its own resistor and PWM pin.
• Colour mixing is additive: red plus green makes yellow, all three at full make white, all off is darkness. Your eye does the blending.
• 8-bit resolution is not arbitrary: 0 to 255 per channel is exactly what the browser's colour picker produces, so the numbers pass through untouched.
• A URL can carry data, not just a command. Projects 5 and 7 name an action in the path; here the path carries three values.
• indexOf() and substring() are enough to pull structured data out of text. Later projects hand this to a library (ArduinoJson in Project 12), but the idea is the same.
• Hardware PWM runs independently of your code: the LED holds its colour while the processor serves pages.
• Why we switch to a web-server library now. Projects 5 and 6 hand-rolled HTTP so you could see what a request and response actually look like as text. That parsing does not change project to project, so from Project 7 on the course switches to the ESP Async WebServer library: it handles the parsing for you, matches a URL to a handler you register, and answers many clients without blocking loop(), the same non-blocking idea millis() introduced in Project 4.

Now try

• Color cycle animation: Add a mode that automatically fades through red, green, blue, yellow, cyan, magenta, and white with a button to start/stop it.
• Hex color input: Add a text field on the web page where you can type a hex color code (like #FF8800) and have the ESP32 parse it and set the LED.
